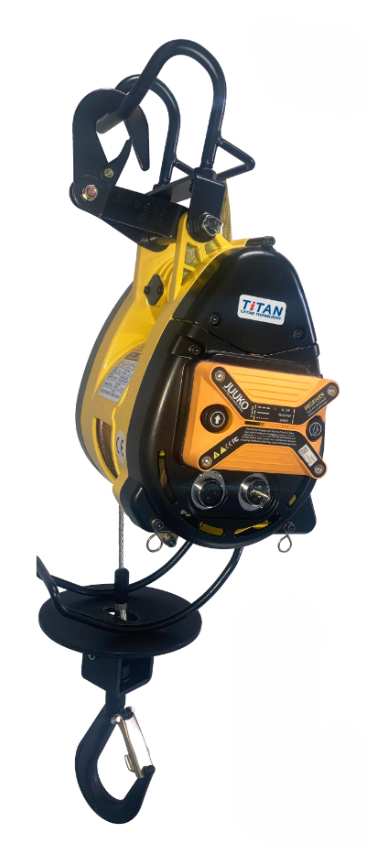

Wireless Compact Rope Hoist
Wireless Compact Rope Hoist
- Brand: Titan Lifting
- Capacity: 0.25t
Utilising wireless technology, the wireless compact rope hoist provides enhanced flexibility and efficiency across a range of industrial and construction applications. With a built-in wireless receiver, this hoist allows for safe and efficient operation when lifting and moving heavy loads, greatly minimising the need for manual intervention.
Features
Industries
Documents
Features
- Duty cycle 15mins per 60mins
- Fitted with 30m 7×19 G1470 wire rope
- Electromagnetic and mechanical brake winch
- Equipped with Juuko Wireless Remote Control, with 50m radius
Industries
- Civil
- Construction
- Engineering
- Hire
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SPEED | HEIGHT OF LIFT | WIRE ROPE Ø | NET WEIGHT |
|---|---|---|---|---|---|
| TLTBH-230-WRC | 230kg | 15-23 m/min | 29m | 5mm x 30m | 17kg |

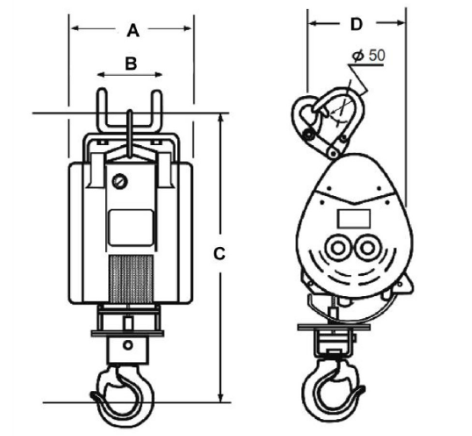

Dimensions
| PRODUCT CODE | A | B | C | D |
|---|---|---|---|---|
| TLTBH-230-WRC | 280mm | 115mm | 600mm | 200mm |
