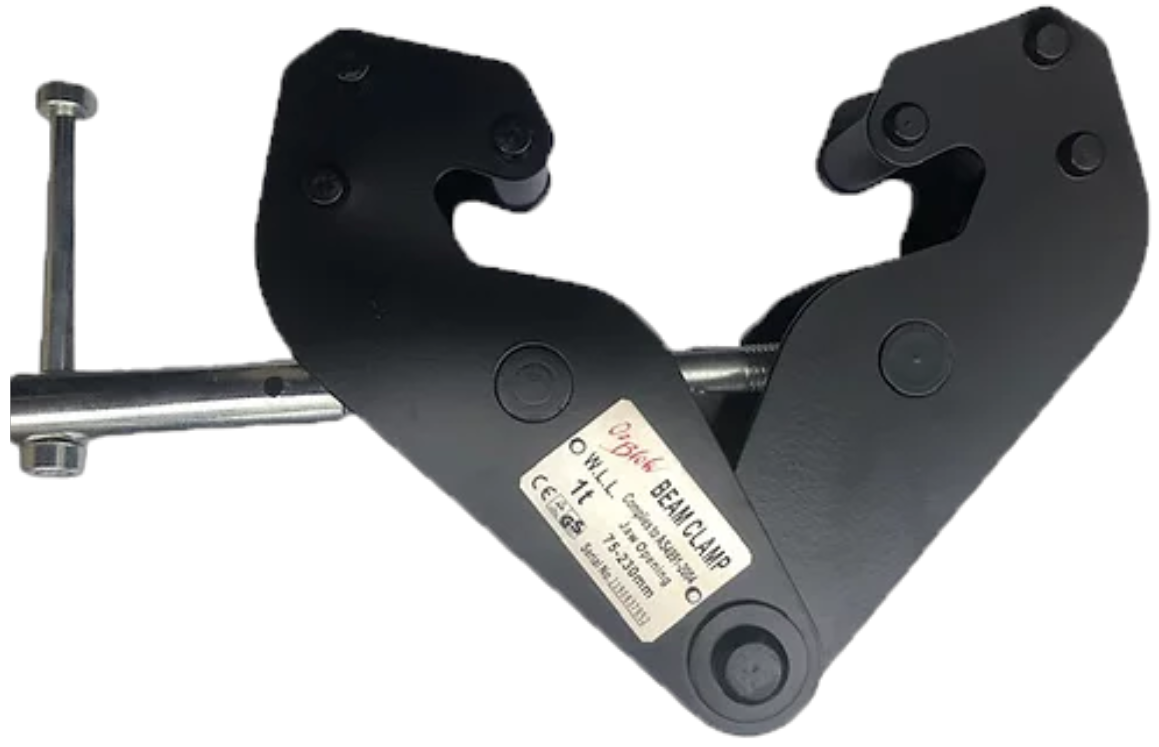

Entertainment Girder Clamp
Entertainment Girder Clamp
- Brand: OzBlok
- Capacity: 1.0t
Specifically designed for stage rigging and theatre productions, the entertainment girder clamp is black in colour, allowing production crews to seamlessly move and lift items with precision, whilst remaining from audience view.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Integrated load bar
- Robust all steel construction
- Designed to minimise stress applied to beam
- Durable baked enamel paint protection in black
- Super quick adjustment to any girder width in range
Industries
- Entertainment
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | ADJUSTABLE BEAM WIDTH |
|---|---|---|
| GCOZ010-BLK | 1.0t | 75mm – 230mm |

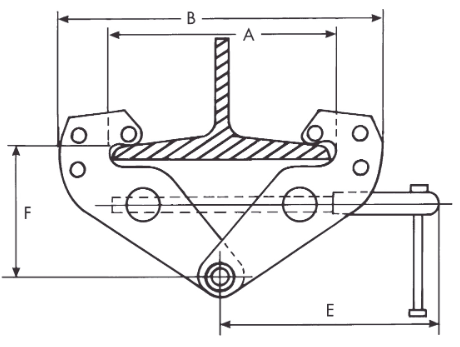

Dimensions
| PRODUCT CODE | W.L.L. | A | B (min) | B (max) | C | D | E | F (min) | F (max) | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GCOZ010-BLK | 1.0t | 278mm | 182mm | 380mm | 64mm | 4mm | 217mm | 90mm | 150mm | 26mm | 19mm |
