Girder Clamp
- Brand: OzBlok
- Capacity: 1.0t to 10.0t

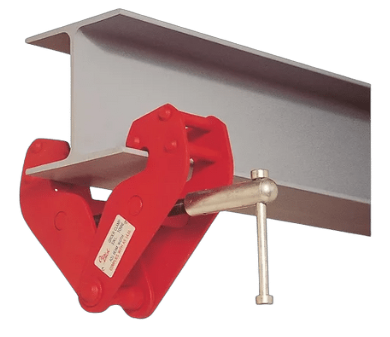

Lightweight and economical, this functional and portable girder clamp enables a fast, simple and secure means of attaching a lifting point to a beam. Suitable for a wide range of i-beams and flange widths with low head room.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Wide adjustment range
- Robust all-steel construction
- Designed to minimise stress applied to beam
- Super quick adjustment to any girder width in range
- Integrated load bar with multi directional adjusting screw spindle
Industries
- Civil
- Construction
- Engineering
- Entertainment
- Hire
- Lifts/Elevators
- Marine
- Manufacturing
- Mining
- Ports
- Warehousing
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | ADJUSTABLE BEAM WIDTH |
---|---|---|
GCOZ010 | 1.0t | 75mm – 230mm |
GCOZ020 | 2.0t | 75mm – 230mm |
GCOZ030 | 3.0t | 80mm – 320mm |
GCOZ050 | 5.0t | 90mm – 320mm |
GCOZ100 | 10.0t | 90mm – 320mm |

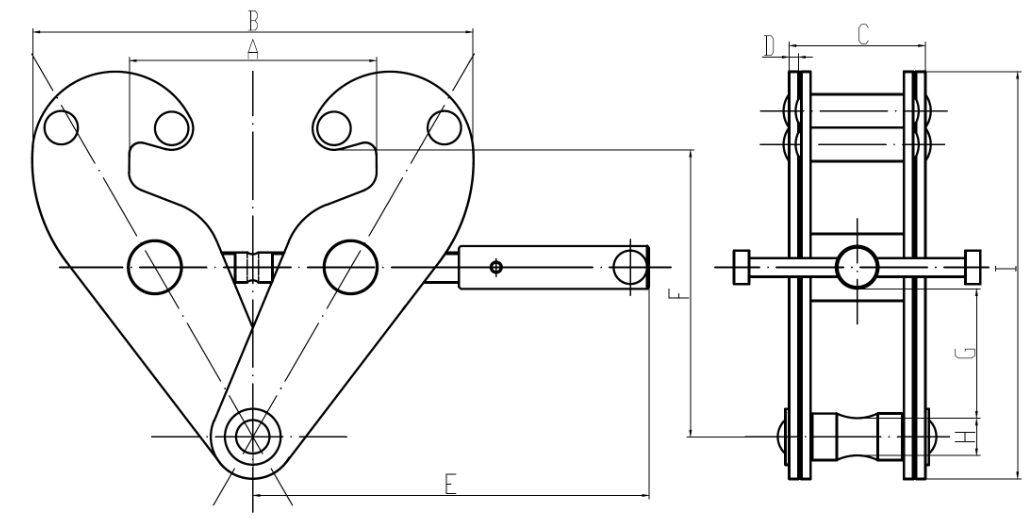

Dimensions
PRODUCT CODE | W.L.L. | A | B (min) | B (max) | C | D | E | F (min) | F (max) | G | H |
---|---|---|---|---|---|---|---|---|---|---|---|
GCOZ010 | 1.0t | 278mm | 182mm | 380mm | 64mm | 4mm | 217mm | 90mm | 150mm | 26mm | 19mm |
GCOZ020 | 2.0t | 278mm | 182mm | 380mm | 74mm | 6mm | 217mm | 90mm | 150mm | 26mm | 21mm |
GCOZ030 | 3.0t | 356mm | 220mm | 500mm | 100mm | 8mm | 217mm | 145mm | 220mm | 50mm | 23mm |
GCOZ050 | 5.0t | 356mm | 220mm | 500mm | 112mm | 10mm | 277mm | 145mm | 220mm | 47mm | 29mm |
GCOZ100 | 10.0t | 356mm | 250mm | 520mm | 120mm | 12mm | 285mm | 160mm | 230mm | 52mm | 39mm |
