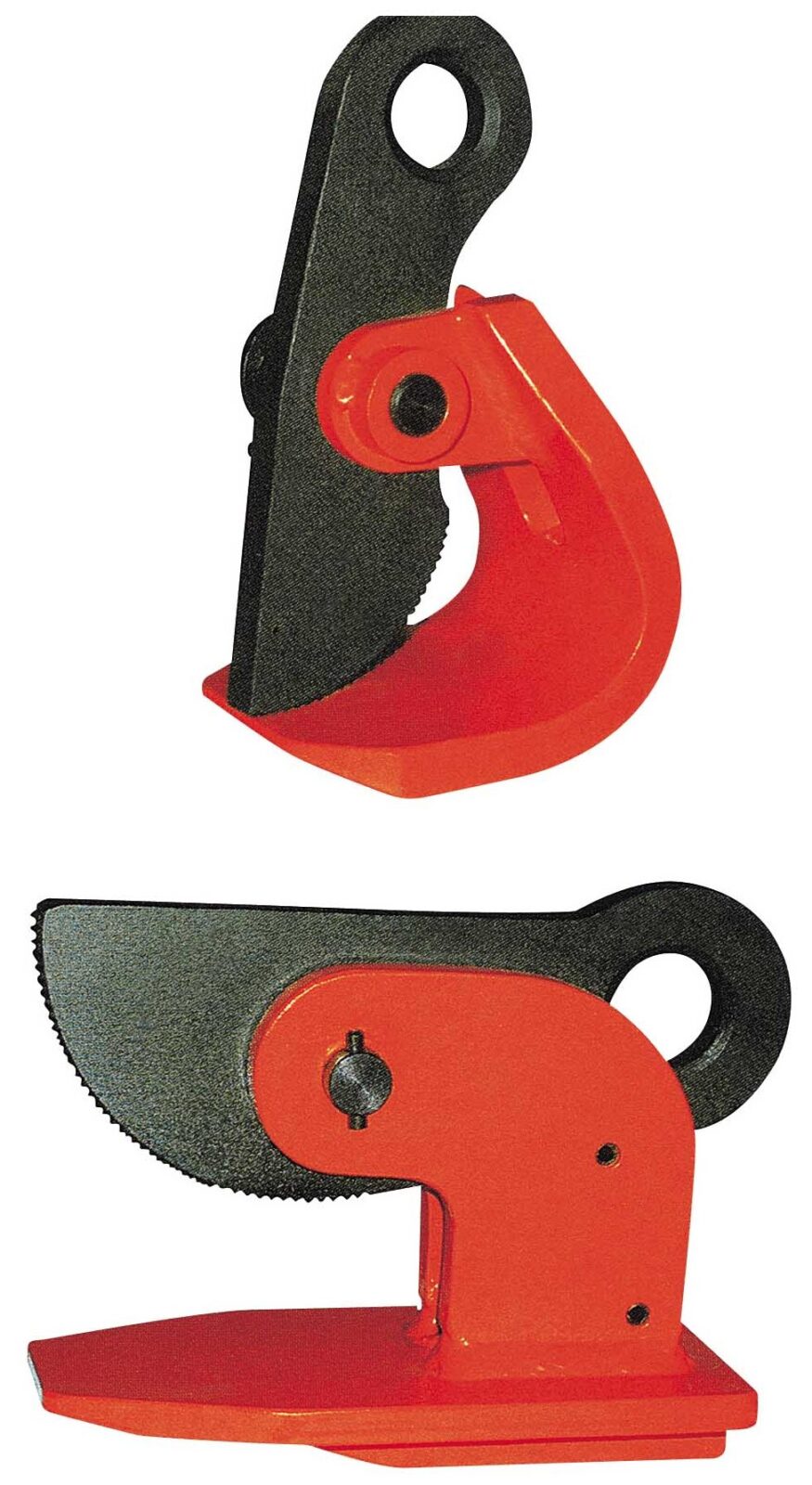

Horizontal Plate Clamp
Horizontal Plate Clamp
- Brand: OzBlok
- Capacity: 1.5t to 5.0t (pairs)
Compact and portable, this heavy duty horizontal plate clamp is designed for easy, safe lifting and transportation of steel material on a flat plane configuration from any position. Quick and easy to install, these clamps are for us in pairs or multiples.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Changeable cam jaw
- Serrated gripping cam bites
- Robust all-steels construction
- Automatic clamping mechanism
- Durable baked enamel paint protection
Industries
- Aeronautical
- Automotive
- Civil
- Construction
- Engineering
- Hire
- Infrastructure
- Manufacturing
- Marine
- Mining
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. (PER PAIR) | TEST LOAD P/PAIR | MAX. JAW OPENING | NET WEIGHT SINGLE | NET WEIGHT PAIR | VOLUME |
|---|---|---|---|---|---|---|
| PCHOZ015 | 1.5t | 3.0t | 50mm | 4.3kg | 8.6kg | 17cm x 12cm x 24cm |
| PCHOZ030 | 3.0t | 6.0t | 50mm | 7.7kg | 15.4kg | 26cm x 13cm x 20cm |
| PCHOZ050 | 5.0t | 10.0t | 60mm | 14.1kg | 28.2kg | 30cm x 15cm x 23cm |

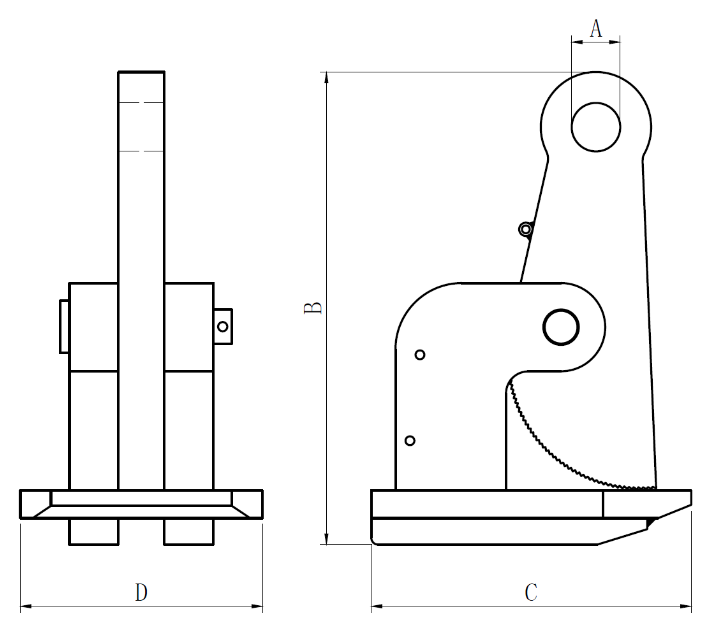

Dimensions
| PRODUCT CODE | W.L.L. PER PAIR | A | B | C | D (max) | E |
|---|---|---|---|---|---|---|
| PCHOZ015 | 1.5t | 0mm – 52mm | 127mm | 100mm | 218mm | f30mm |
| PCHOZ030 | 3.0t | 0mm – 52mm | 220mm | 110mm | 270mm | f36mm |
| PCHOZ050 | 5.0t | 0mm – 62mm | 260mm | 130mm | 315mm | f49mm |
