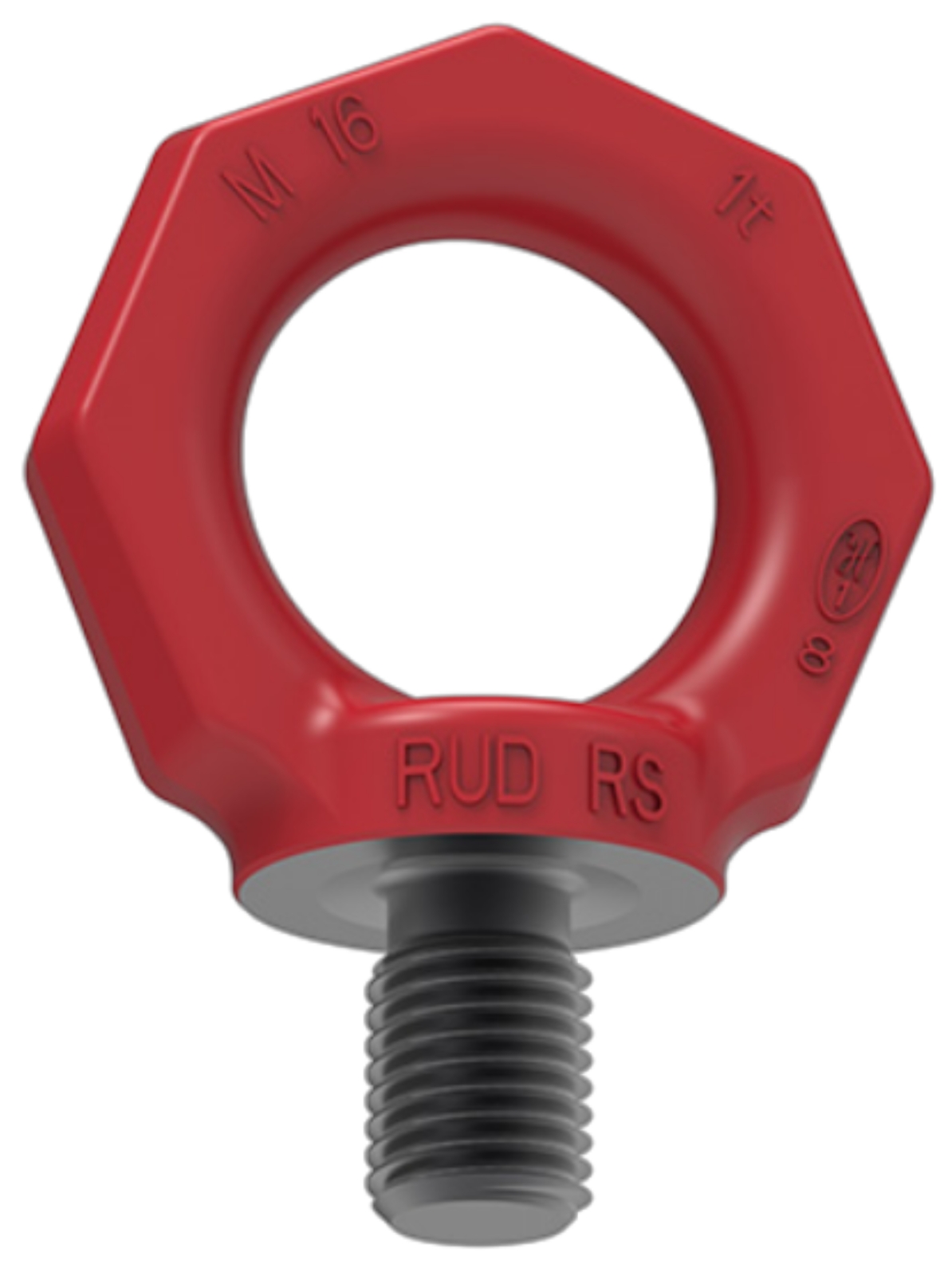

Eyebolt Metric Coarse Thread RS
Eyebolt Metric Coarse Thread RS
- Brand: RUD
- Capacity: 0.1t to 8.0t
With a higher W.L.L. than DIN 580 or BS Eye Bolts, and a sturdy construction using forged and tempered steel, this metric course thread eyebolt offers reliable and secure lifting capabilities for both axial and angular loading applications. Rated for use in both single-part and multi-part lifts with a maximum operation temperature range of -40° to 200°C without reduction in the W.L.L. or up to 400°C with a reduction of the W.L.L.
- Australian Standard: AS2317
Features
Industries
Documents
Features
- Safety factor of 4:1
- M6 to M48 thread range
- Clear markings on eyebolt head
- Manufactured from forged, tempered steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Gas/Oil
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | THREAD SIZE | NET WEIGHT |
|---|---|---|---|
| RUD61401 | 0.10t | M6 | 0.10kg |
| RUD61402 | 0.20t | M8 | 0.10kg |
| RUD56397 | 0.25t | M10 | 0.10kg |
| RUD56398 | 0.40t | M12 | 0.18kg |
| RUD56403 | 0.75t | M14 | 0.30kg |
| RUD56404 | 1.00t | M16 | 0.30kg |
| RUD53850 | 1.20t | M18 | 0.45kg |
| RUD56407 | 1.50t | M20 | 0.47kg |
| RUD53346 | 1.50t | M22 | 0.87kg |
| RUD56408 | 2.00t | M24 | 0.89kg |
| RUD53347 | 2.00t | M27 | 1.60kg |
| RUD56409 | 3.00t | M30 | 1.62kg |
| RUD57770 | 3.00t | M33 | 6.10kg |
| RUD56954 | 4.00t | M36 | 6.50kg |
| RUD57771 | 5.00t | M39 | 6.50kg |
| RUD56955 | 6.00t | M42 | 6.50kg |
| RUD58044 | 7.00t | M45 | 6.50kg |
| RUD56956 | 8.00t | M48 | 6.50kg |
Dimensions
| PRODUCT CODE | T | A | B | C | D | E | M |
|---|---|---|---|---|---|---|---|
| RUD61401 | 34mm | 12mm | 11mm | 10mm | 25mm | 25mm | M6mm |
| RUD61402 | 34mm | 12mm | 11mm | 10mm | 25mm | 25mm | M8mm |
| RUD56397 | 34mm | 15mm | 11mm | 10mm | 25mm | 25mm | M10mm |
| RUD56398 | 41mm | 18mm | 13mm | 12mm | 30mm | 30mm | M12mm |
| RUD56403 | 48mm | 21mm | 15mm | 14mm | 35mm | 35mm | M14mm |
| RUD56404 | 48mm | 24mm | 15mm | 14mm | 35mm | 35mm | M16mm |
| RUD53850 | 55mm | 30mm | 17mm | 16mm | 40mm | 40mm | M18mm |
| RUD56407 | 55mm | 30mm | 17mm | 16mm | 40mm | 40mm | M20mm |
| RUD53346 | 70mm | 36mm | 21mm | 20mm | 50mm | 50mm | M22mm |
| RUD56408 | 70mm | 36mm | 21mm | 20mm | 50mm | 50mm | M24mm |
| RUD53347 | 85mm | 45mm | 26mm | 24mm | 60mm | 60mm | M27mm |
| RUD56409 | 85mm | 45mm | 26mm | 24mm | 60mm | 60mm | M30mm |
| RUD57770 | 130mm | 50mm | 43mm | 38mm | 90mm | 100mm | M33mm |
| RUD56954 | 130mm | 54mm | 43mm | 38mm | 90mm | 100mm | M36mm |
| RUD57771 | 130mm | 59mm | 43mm | 38mm | 90mm | 100mm | M39mm |
| RUD56955 | 130mm | 63mm | 43mm | 38mm | 90mm | 100mm | M42mm |
| RUD58044 | 130mm | 67mm | 43mm | 38mm | 90mm | 100mm | M45mm |
| RUD56956 | 130mm | 67mm | 43mm | 38mm | 90mm | 100mm | M48mm |
