Variable Length Load Ring – Metric Thread
Variable Length Load Ring – Metric Thread
- Brand: RUD
- Capacity: 0.63t to 20.00t

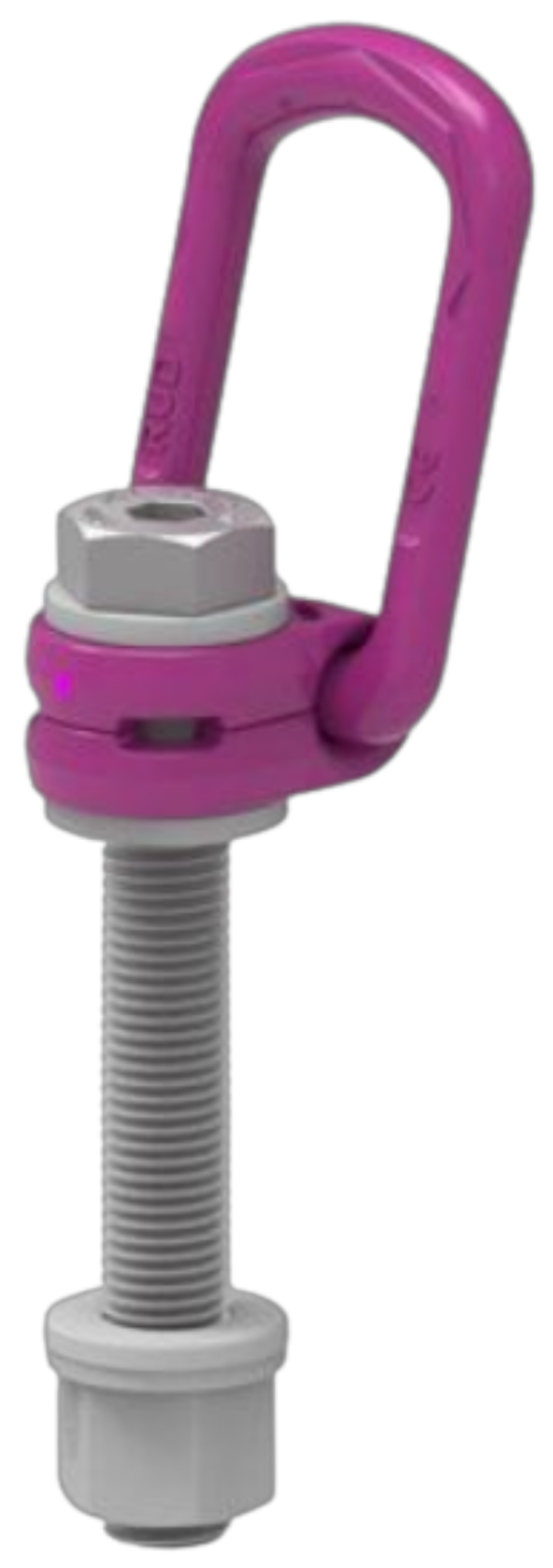

Compact and functional, the VLBG-PLUS Load Ring with metric thread and maximum length bolt, has a safety rating of 4:1 and has been 100% electro-magnetic crack tested. Made from Grade 12 material with a powder coated finish, the load ring is designed for use in extreme temperatures ranging from -40˚C up to 100˚C with a maximum temperature of 350˚C (WLL will reduce at 350˚C). Due to the full 360˚ swivel and the 180˚ pivot, the VLBG-PLUS ensures a perfect connection every time.
- Australian Standard: AS 2317
Features
Industries
Documents
Features
- Safety factor of 4:1
- Available in various lengths
- Grade 12 fully interchangeable ICE bolt
- Constructed from Grade 120 high tensile steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | THREAD SIZE | NET WEIGHT |
|---|---|---|---|
| RUD8600470 | 0.63t | M8 | 0.35kg |
| RUD8600471 | 0.90t | M10 | 0.40kg |
| RUD8600472 | 1.35t | M12 | 0.48kg |
| RUD8600474 | 2.00t | M16 | 0.96kg |
| RUD8600476 | 3.50t | M20 | 1.67kg |
| RUD8600478 | 4.50t | M24 | 2.28kg |
| RUD8600480 | 6.70t | M30 | 4.58kg |
| RUD8600289 | 8.00t | M36 | 7.20kg |
| RUD8600291 | 15.00t | M42 | 13.78kg |
| RUD8600290 | 10.00t | M42 | 9.28kg |
| RUD8600292 | 20.00t | M48 | 14.75kg |
| RUD8600293 | 20.00t | M48 | 14.89kg |

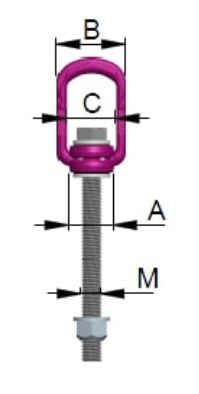

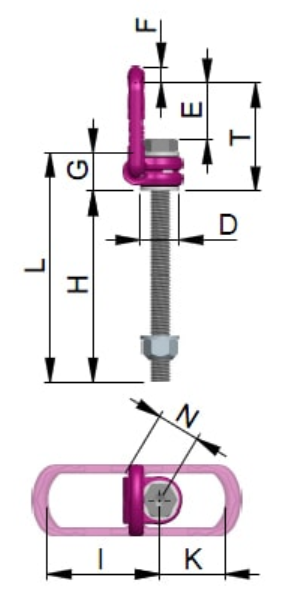

Dimensions
| PRODUCT CODE | T | A | B | C | D | E | F | G | H | I | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RUD8600470 | 75mm | 30mm | 54mm | 34mm | 24mm | 40mm | 10mm | 29mm | 76mm | 75mm | 45mm | 105mm | M8mm | 32mm |
| RUD8600471 | 75mm | 30mm | 54mm | 34mm | 24mm | 39mm | 10mm | 29mm | 96mm | 75mm | 45mm | 125mm | M10mm | 32mm |
| RUD8600472 | 75mm | 32mm | 54mm | 34mm | 26mm | 38mm | 10mm | 29mm | 116mm | 75mm | 45mm | 145mm | M12mm | 32mm |
| RUD8600474 | 85mm | 33mm | 56mm | 36mm | 30mm | 39mm | 13.5mm | 36mm | 149mm | 86mm | 47mm | 185mm | M16mm | 38mm |
| RUD8600476 | 110mm | 50mm | 82mm | 54mm | 45mm | 55mm | 16.5mm | 43mm | 187mm | 113mm | 64mm | 230mm | M20mm | 48mm |
| RUD8600478 | 125mm | 50mm | 82mm | 54mm | 45mm | 67mm | 18mm | 43mm | 220mm | 130mm | 78mm | 265mm | M24mm | 48mm |
| RUD8600480 | 147mm | 60mm | 103mm | 65mm | 60mm | 67mm | 22.5mm | 61mm | 279mm | 151mm | 80mm | 340mm | M30mm | 67mm |
| RUD8600289 | 197mm | 77mm | 122mm | 82mm | 70mm | 97mm | 26.5mm | 77mm | 223mm | 205mm | 110mm | 300mm | M36mm | 87mm |
| RUD8600291 | 222mm | 95mm | 156mm | 100mm | 85mm | 109mm | 36mm | 87mm | 263mm | 230mm | 130mm | 350mm | M42mm | 100mm |
| RUD8600290 | 197mm | 77mm | 122mm | 82mm | 70mm | 94mm | 26.5mm | 77mm | 273mm | 205mm | 110mm | 350mm | M42mm | 70mm |
| RUD8600292 | 222mm | 95mm | 156mm | 100mm | 95mm | 105mm | 36mm | 87mm | 213mm | 230mm | 130mm | 300mm | M48mm | 100mm |
| RUD8600293 | 222mm | 95mm | 156mm | 100mm | 95mm | 105mm | 36mm | 87mm | 303mm | 230mm | 130mm | 390mm | M48mm | 100mm |
