Weld-On Load Rings
Weld-On Load Rings
- Brand: RUD
- Capacity: 1.5t to 16.0t

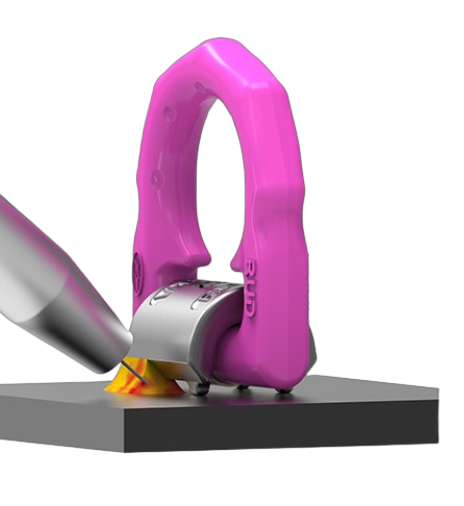

Compact and functional, these weld on load rings provide a versatile lifting solution for welding in a range of industrial settings. Multi-directional, these load rings feature an optimised suspension ring that pivots 180°, enhancing support during side loading and safeguards the clamping spring.
- Australian Standard: AS2317
Features
Industries
Documents
Features
- Weld on design
- Safety factor of 4:1
- Constructed from forged alloy steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | NET WEIGHT |
|---|---|---|
| RD7993035 | 1.5t | 0.35kg |
| RD7994830 | 2.5t | 0.48kg |
| RD7993036 | 4.0t | 0.76kg |
| RD7993037 | 6.7t | 1.90kg |
| RD7993040 | 10.0t | 2.90kg |
| RD7906640 | 16.0t | 7.12kg |
| RD7993115 | 1.5t | 0.35kg |
| RD7995346 | 2.5t | 0.48kg |
| RD7993116 | 4.0t | 0.72kg |
| RD7993117 | 6.7t | 1.89kg |
| RD7993118 | 10.0t | 2.90kg |
| RD7993041 | 16.0t | 7.10kg |

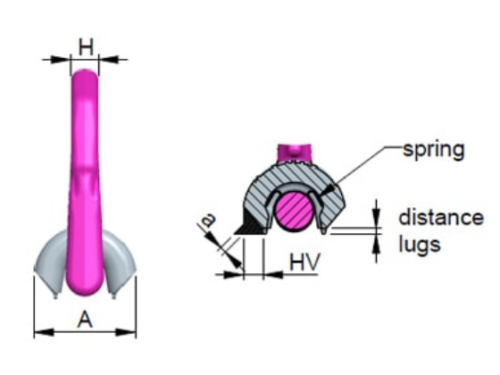

Dimensions
| PRODUCT CODE | A | B | T | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| RD7993035 | 33mm | 66mm | 65mm | 25mm | 38mm | 40mm | 14mm | 33mm | 14mm |
| RD7994830 | 36mm | 77mm | 75mm | 27mm | 45mm | 48mm | 16mm | 40mm | 14mm |
| RD7993036 | 42mm | 87mm | 83mm | 31mm | 51mm | 52mm | 18mm | 46mm | 16mm |
| RD7993037 | 61mm | 115mm | 117mm | 44mm | 67mm | 73mm | 24mm | 60mm | 22mm |
| RD7993040 | 75mm | 129mm | 126mm | 55mm | 67mm | 71mm | 26.5mm | 60mm | 26.5mm |
| RD7906640 | 96mm | 192mm | 176mm | 70mm | 100mm | 106mm | 40mm | 90mm | 26mm |
| RD7993115 | 33mm | 66mm | 65mm | 25mm | 38mm | 40mm | 14mm | 33mm | 14mm |
| RD7995346 | 36mm | 77mm | 75mm | 27mm | 45mm | 48mm | 16mm | 40mm | 14mm |
| RD7993116 | 42mm | 87mm | 83mm | 31mm | 51mm | 52mm | 18mm | 46mm | 16mm |
| RD7993117 | 61mm | 115mm | 117mm | 44mm | 67mm | 73mm | 24mm | 60mm | 22.5mm |
| RD7993118 | 75mm | 129mm | 126mm | 55mm | 67mm | 71mm | 27mm | 60mm | 26mm |
| RD7993041 | 96mm | 192mm | 176mm | 70mm | 100mm | 106mm | 40mm | 90mm | 26mm |
