Weld-On Load Ring
Weld-On Load Ring
- Brand: Townley
- Capacity: 2.5t to 16.0t

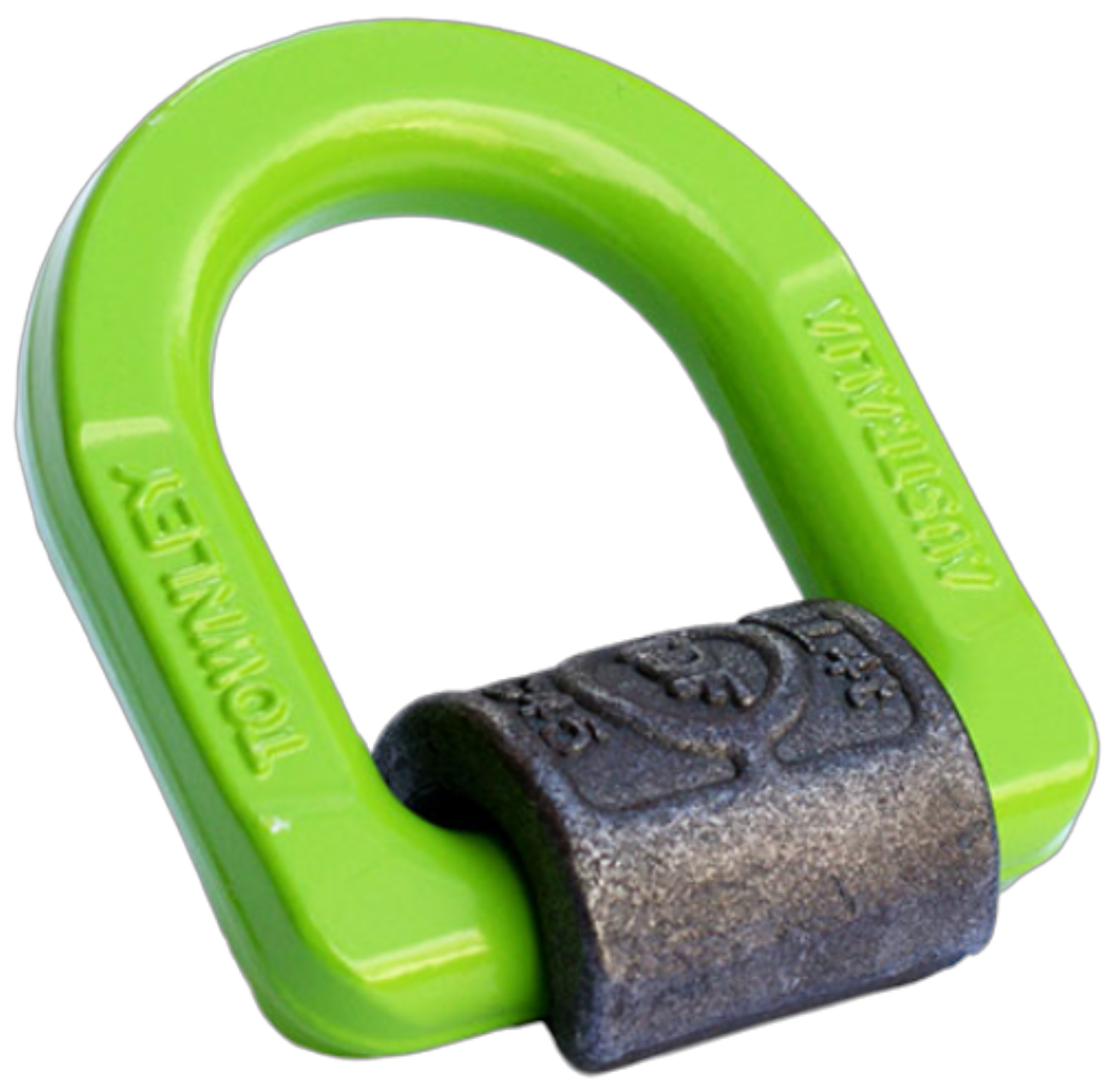

This strong and durable weld-on load ring is ideal for lifting heavy loads in industrial settings. Easy to install and designed to withstand the most demanding conditions, this weld-on load ring has a high lifting capacity in an axial direction, and features 100% Magnaflux crack detection, making it ideal for a wide range of applications.
- Australian Standard: AS 2317
Features
Industries
Documents
Features
- Powder coated finish
- Hardened and tempered
- Welding lug forged from G300 mild steel
- Load ring constructed from high tensile alloy steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| TWLP250 | 2.5t | 0.42t |
| TWLP400 | 4.0t | 0.86t |
| TWLP670 | 6.7t | 2.00t |
| TWLP1000 | 10.0t | 3.20t |
| TWLP1600 | 16.0t | 7.00t |

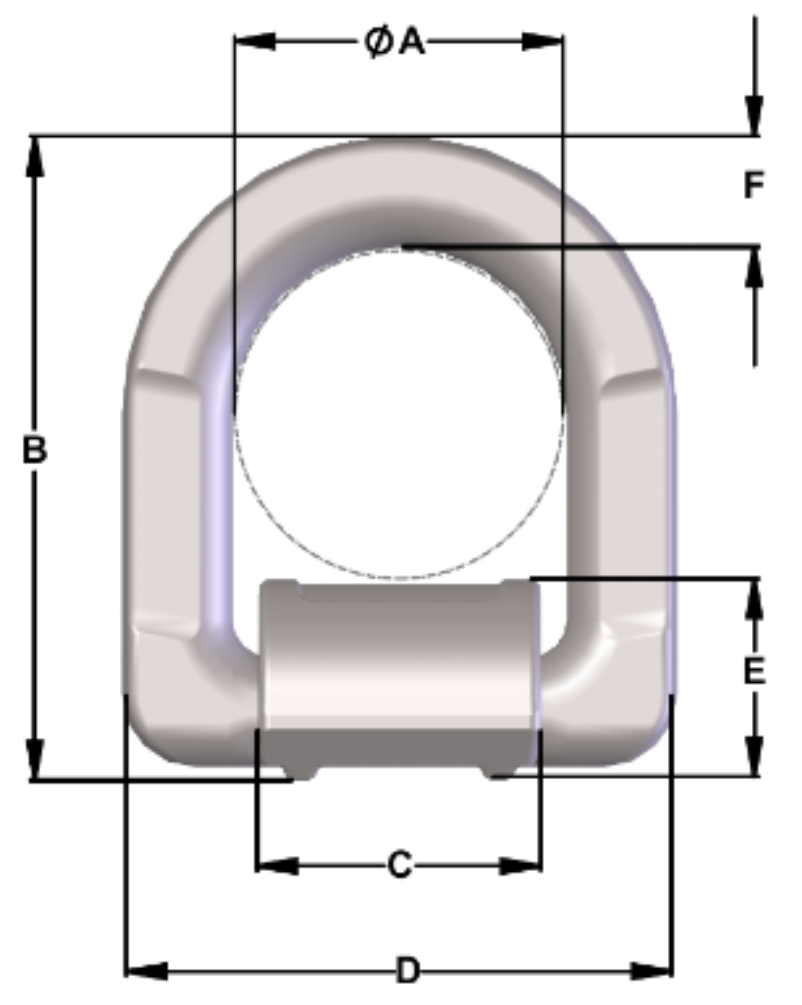

Dimensions
| PRODUCT CODE | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| TWLP250 | 40mm | 82mm | 34mm | 68mm | 28mm | 14mm | 14mm | 92mm |
| TWLP400 | 53mm | 104mm | 46mm | 90mm | 33mm | 18mm | 18mm | 116mm |
| TWLP670 | 68mm | 138mm | 60mm | 116mm | 45mm | 23mm | 23mm | 155mm |
| TWLP1000 | 70mm | 140mm | 60mm | 130mm | 57mm | 26mm | 26mm | 170mm |
| TWLP1600 | 102mm | 210mm | 92mm | 192mm | 70mm | 38mm | 30mm | 240mm |
