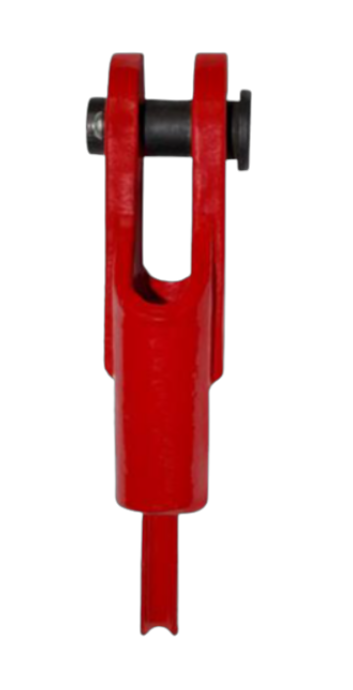

Open Wedge Socket
- Brand: Austlift
- Capacity: 1.5t to 12.0t
Suitable for the temporary or permanent termination of wire rope such as crane roper applications. Strong and durable, our Open Wedge Sockets are easy to use and have been thoroughly tested to the most stringent standards.
- Australian Standard: AS2740
Features
Industries
Documents
Features
- Proof loaded to 2x W.L.L.
- Brake tested to 4x W.L.L.
- Available for rope sizes 10mm to 38mm
- Available in a number of finishes including zinc plated, galvanised, painted and black self-colour
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
---|---|---|---|
AL308010 | 1.5t | 10mm | 1.00kg |
AL308012 | 2.0t | 12mm | 1.70kg |
AL308014 | 2.5t | 13-14mm | 4.00kg |
AL308016 | 3.0t | 16mm | 3.27kg |
AL308018 | 3.5t | 18mm | 4.00kg |
AL308020 | 5.1t | 19-20mm | 5.45kg |
AL308022 | 5.6t | 22mm | 6.37kg |
AL308024 | 6.6t | 24mm | 8.32kg |
AL308028 | 9.5t | 28mm | 13.94kg |
AL308032 | 12.0t | 32mm | 17.94kg |
Dimensions
PRODUCT CODE | A | B | C | D | R (in) |
---|---|---|---|---|---|
AL308010 | 120mm | 16.5mm | 37.7mm | 20mm | 25mm |
AL308012 | 155mm | 21.3mm | 66.0mm | 25mm | 30mm |
AL308014 | 185mm | 23.5mm | 80.0mm | 30mm | 35mm |
AL308016 | 195mm | 28.2mm | 80.0mm | 34mm | 42mm |
AL308018 | 195mm | 28.0mm | 81.0mm | 36mm | 44mm |
AL308020 | 220mm | 31.9mm | 82.0mm | 38mm | 50mm |
AL308022 | 240mm | 31.9mm | 100.0mm | 40mm | 52mm |
AL308024 | 260mm | 34.3mm | 100.0mm | 50mm | 60mm |
AL308028 | 305mm | 40.2mm | 100.0mm | 55mm | 70mm |
AL308032 | 360mm | 43.9mm | 120.0mm | 65mm | 77mm |
