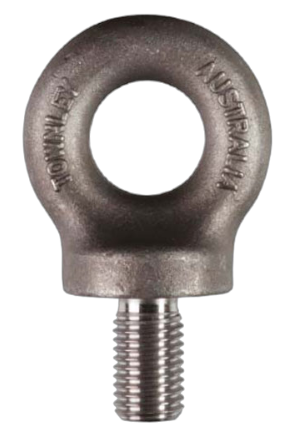

Grade 4 Eyebolt
Grade 4 Eyebolt
- Brand: Townley
- Capacity: 0.25t to 30.0t
Strong and durable, our Grade 4 Eyebolts are designed to withstand heavy loads, offering up to 4 times higher lifting capacity in certain applications, whilst maintaining a 6:1 design factor of safety. Available with special threads and long shanks, plus a range of finishes including natural, hot dip galvanising, zinc passivating, chrome plating and powder coating, these Grade 4 eyebolts are ideal for lifting, anchoring and rigging applications.
- Australian Standard: AS2317
Features
Industries
Documents
Features
- Safety factor of 6:1
- Alternative coating finishes available on request
- Manufactured from heat certified Australian Steel
- Special thread forms and shank long shanks available on request
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. F1 | W.L.L. F2 | METRIC AØ | NET WEIGHT |
|---|---|---|---|---|
| TNG4EB10 | 0.25t | 0.06t | M10 | 0.06kg |
| TNG4EB12 | 0.40t | 0.10t | M12 | 0.15kg |
| TNG4EB14 | 0.40t | 0.10t | M14 | 0.28kg |
| TNG4EB16 | 0.80t | 0.20t | M16 | 0.28kg |
| TNG4EB18 | 0.80t | 0.20t | M18 | 0.46kg |
| TNG4EB20 | 1.60t | 0.40t | M20 | 0.46kg |
| TNG4EB22 | 2.00t | 0.50t | M22 | 0.85kg |
| TNG4EB24 | 2.50t | 0.62t | M24 | 1.10kg |
| TNG4EB30 | 4.00t | 1.00t | M30 | 2.10kg |
| TNG4EB33 | 5.00t | 1.25t | M33 | 2.10kg |
| TNG4EB36 | 6.30t | 1.57t | M36 | 3.70kg |
| TNG4EB39 | 7.00t | 1.75t | M39 | 3.70kg |
| TNG4EB42 | 8.00t | 2.00t | M42 | 6.30kg |
| TNG4EB48 | 10.00t | 2.50t | M48 | 9.50kg |
| TNG4EB56 | 15.00t | 3.70t | M56 | 19.50kg |
| TNG4EB64 | 20.00t | 5.00t | M64 | 19.50kg |
| TNG4EB76 | 30.00t | 7.50t | M76 | 29.00kg |
Dimensions
| PRODUCT CODE | BØ | C | DØ | E | F |
|---|---|---|---|---|---|
| TNG4EB10 | 21mm | 14mm | 9mm | 19mm | 17mm |
| TNG4EB12 | 28mm | 18mm | 11mm | 24mm | 21mm |
| TNG4EB14 | 35mm | 23mm | 14mm | 31mm | 27mm |
| TNG4EB16 | 35mm | 23mm | 14mm | 31mm | 27mm |
| TNG4EB18 | 42mm | 30mm | 16mm | 35mm | 38mm |
| TNG4EB20 | 42mm | 30mm | 16mm | 35mm | 38mm |
| TNG4EB22 | 50mm | 32mm | 20mm | 41mm | 41mm |
| TNG4EB24 | 57mm | 38mm | 22mm | 48mm | 42mm |
| TNG4EB30 | 71mm | 49mm | 27mm | 65mm | 52mm |
| TNG4EB33 | 71mm | 49mm | 27mm | 65mm | 52mm |
| TNG4EB36 | 87mm | 53mm | 35mm | 73mm | 64mm |
| TNG4EB39 | 87mm | 53mm | 35mm | 73mm | 64mm |
| TNG4EB42 | 102mm | 66mm | 40mm | 90mm | 76mm |
| TNG4EB48 | 115mm | 75mm | 49mm | 99mm | 89mm |
| TNG4EB56 | 143mm | 97mm | 56mm | 124mm | 116mm |
| TNG4EB64 | 143mm | 97mm | 56mm | 124mm | 116mm |
| TNG4EB76 | 163mm | 106mm | 66mm | 140mm | 125mm |
