Grade 4 Eyenut

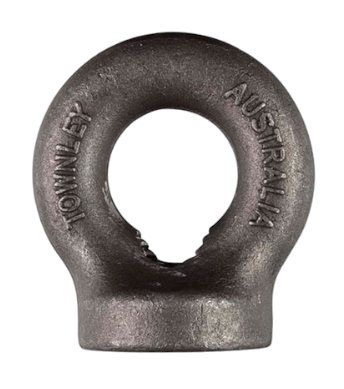

Grade 4 Eyenut
- Brand: Townley
- Capacity: 0.25t to 30.0t
Strong and durable, our Grade 4 Eyenuts are designed to withstand heavy loads and offer up to 4 times higher lifting capacity in certain applications, whilst maintaining a 6:1 design factor of safety. Available in a range of finishes including natural, hot dip galvanising, zinc passivating, chrome plating and powder coating, these Grade 4 Eyenuts are ideal for lifting, anchoring and rigging applications.
- Australian Standard: AS2317
Features
Industries
Documents
Features
- Safety factor of 6:1
- Range of finishes available
- Manufactured from heat certified Australian Steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. F1 | W.L.L. F2 | METRIC AØ | NET WEIGHT |
|---|---|---|---|---|
| TNG4EN10 | 0.25t | 0.06t | M10 | 0.18kg |
| TNG4EN12 | 0.40t | 0.10t | M12 | 0.18kg |
| TNG4EN16 | 0.80t | 0.20t | M16 | 0.30kg |
| TNG4EN20 | 1.60t | 0.40t | M20 | 0.57kg |
| TNG4EN22 | 2.00t | 0.50t | M22 | 0.57kg |
| TNG4EN24 | 2.50t | 0.62t | M24 | 0.85kg |
| TNG4EN30 | 4.00t | 1.00t | M30 | 1.60kg |
| TNG4EN33 | 5.00t | 1.25t | M33 | 1.60kg |
| TNG4EN36 | 6.30t | 1.57t | M36 | 2.80kg |
| TNG4EN39 | 7.00t | 1.75t | M39 | 2.80kg |
| TNG4EN42 | 8.00t | 2.00t | M42 | 4.90kg |
| TNG4EN48 | 10.00t | 2.50t | M48 | 9.50kg |
| TNG4EN56 | 15.00t | 3.75t | M56 | 19.50kg |
| TNG4EN64 | 20.00t | 5.00t | M64 | 19.50kg |
| TNG4EN76 | 30.00t | 7.50t | M76 | 29.00kg |

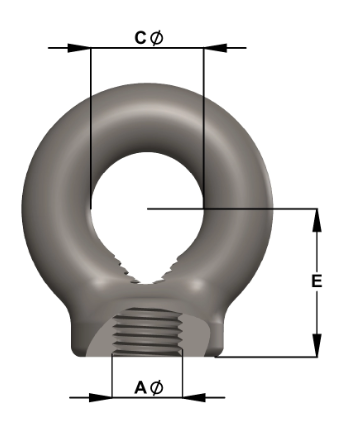

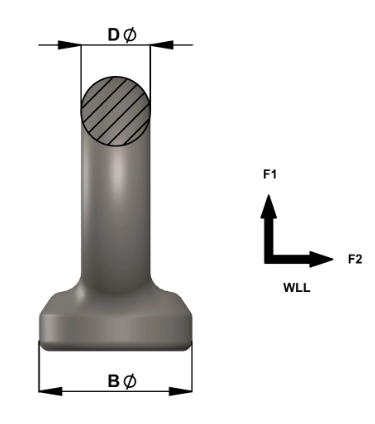

Dimensions
| PRODUCT CODE | BØ | CØ | DØ | E |
|---|---|---|---|---|
| TNG4EN10 | 28.0mm | 23.5mm | 14.0mm | 29.0mm |
| TNG4EN12 | 28.0mm | 23.5mm | 14.0mm | 29.0mm |
| TNG4EN16 | 35.0mm | 28.0mm | 16.0mm | 38.0mm |
| TNG4EN20 | 44.0mm | 32.0mm | 20.0mm | 44.0mm |
| TNG4EN22 | 50.0mm | 33.0mm | 20.0mm | 44.0mm |
| TNG4EN24 | 57.0mm | 38.0mm | 22.0mm | 51.0mm |
| TNG4EN30 | 71.0mm | 48.0mm | 27.0mm | 65.0mm |
| TNG4EN33 | 71.0mm | 48.0mm | 27.0mm | 65.0mm |
| TNG4EN36 | 87.0mm | 53.0mm | 35.0mm | 73.0mm |
| TNG4EN39 | 87.0mm | 53.0mm | 35.0mm | 73.0mm |
| TNG4EN42 | 102.0mm | 66.0mm | 40.0mm | 90.0mm |
| TNG4EN48 | 115.0mm | 72.0mm | 49.0mm | 99.0mm |
| TNG4EN56 | 143.0mm | 95.0mm | 56.0mm | 124.0mm |
| TNG4EN64 | 143.0mm | 95.0mm | 56.0mm | 124.0mm |
| TNG4EN76 | 163.0mm | 106.0mm | 66.0mm | 140.0mm |
