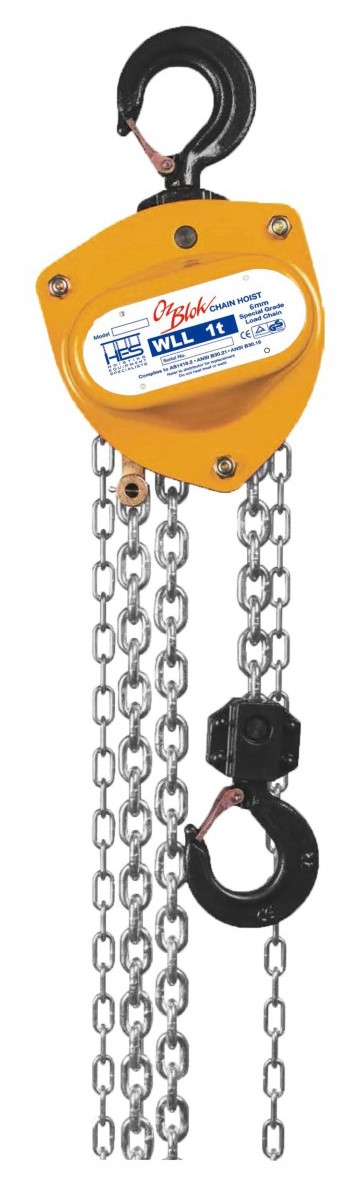

Loadsafe Chain Block
Loadsafe Chain Block
- Brand: OzBlok
- Capacity: 0.50t to 5.0t
Durable and robust, all Loadsafe chain hoists are fitted with an overload activated clutch, limiting the maximum operating force and allowing for greater operator protection from injury and the hoist from damage.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Factory proof tested to 1.5x W.L.L
- Unique hand wheel and free wheel design
- Hook tip with cast steel self-locking latches
- Lower hook complete with thrust race bearing
- Fully machined lift wheel, supported by needle roller bearings
Industries
- Automotive
- Civil
- Construction
- Engineering
- Infrastructure
- Logistics
- Manufacturing
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | STANDARD LIFT | FALLS OF CHAIN | HAND EFFORT TO LIFT W.L.L. | NET WEIGHT | LOAD CHAIN DIAMETER |
|---|---|---|---|---|---|---|
| CBOZLS010-3 | 1.0t | 3m | 1 | 30kg | 12kg | 6mm |
| CBOZLS020-3 | 2.0t | 3m | 1 | 35kg | 18kg | 8mm |
| CBOZLS030-3 | 3.0t | 3m | 2 | 37kg | 25kg | 8mm |
| CBOZLS050-3 | 5.0t | 3m | 2 | 41kg | 37kg | 10mm |
| CBOZLS010-6 | 1.0t | 6m | 1 | 30kg | 17kg | 6mm |
| CB0ZLS020-6 | 2.0t | 6m | 1 | 35kg | 24kg | 8mm |
| CBOZLS030-6 | 3.0t | 6m | 2 | 37kg | 35kg | 8mm |
| CBOZLS050-6 | 5.0t | 6m | 2 | 41kg | 52kg | 10mm |

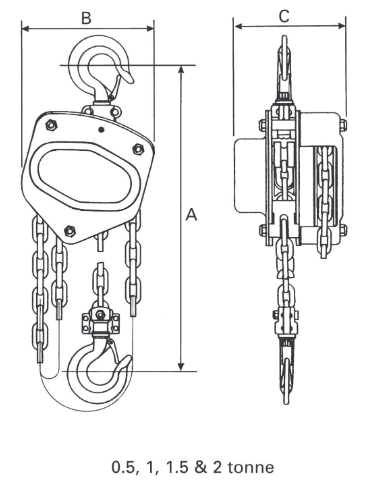

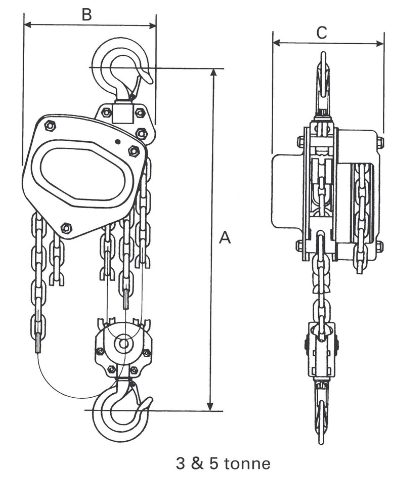

Dimensions
| PRODUCT CODE | A | B | C | HOOK OPENING |
|---|---|---|---|---|
| CBOZLS010-3 | 317mm | 158mm | 140mm | 28mm |
| CBOZLS020-3 | 414mm | 187mm | 161mm | 33.5mm |
| CBOZLS030-3 | 465mm | 210mm | 161mm | 40mm |
| CBOZLS050-3 | 636mm | 253mm | 161mm | 50mm |
| CBOZLS010-6 | 317mm | 158mm | 140mm | 28mm |
| CB0ZLS020-6 | 414mm | 187mm | 161mm | 33.5mm |
| CBOZLS030-6 | 465mm | 210mm | 161mm | 40mm |
| CBOZLS050-6 | 636mm | 253mm | 161mm | 50mm |
