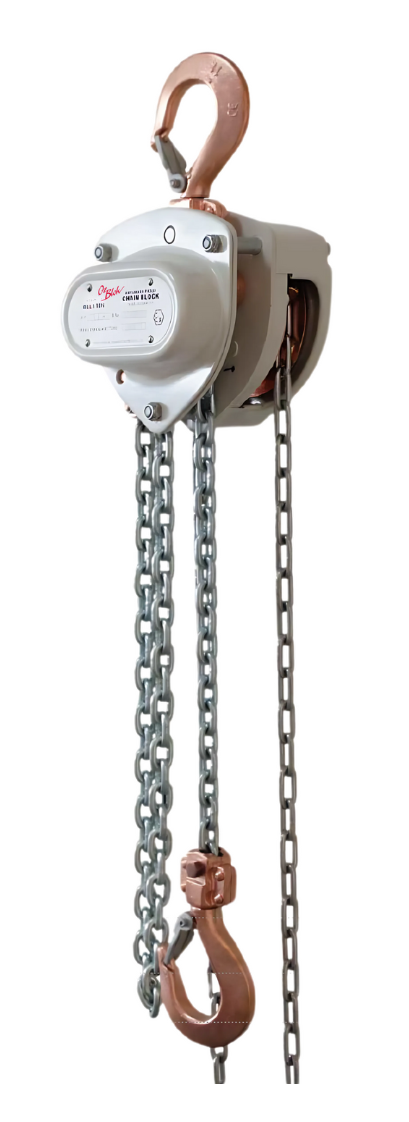

Spark Resistant Chain Block
Spark Resistant Chain Block
- Brand: OzBlok
- Capacity: 0.5t to 30.0t
Versatile and robust, this durable and light weight spark proof chain hoist is designed to be used in potentially hazardous environments, whilst providing optimal operator safety when lifting or pulling heavy loads during sensitive applications.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Anti-spark coatings
- Copper plated suspension and load hooks
- Lower hook complete with thrust race bearing
- Complies with EU’s Explosion Proof Standard ATEX2014/34EU
- Weather protected automatic Weston brake with unique Twin Pawls
Industries
- Chemical
- Marine
- Petro-Chemical
- Pharmaceutical
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | STANDARD LIFT | FALLS OF CHAIN | HAND EFFORT TO LIFT W.L.L. | LOAD CHAIN DIAMETER | NET WEIGHT |
|---|---|---|---|---|---|---|
| CBOZSP005-2.5 | 0.5t | 2.5m | 1 | 200N | 6mm | 10.2kg |
| CBOZSP010-2.5 | 1.0t | 2.5m | 1 | 280N | 6mm | 11.9kg |
| CBOZSP015-3 | 1.5t | 3.0m | 1 | 300N | 8mm | 16.0kg |
| CBOZSP020-3 | 2.0t | 3.0m | 1 | 295N | 8mm | 17.0kg |
| CBOZSP030-3 | 3.0t | 3.0m | 2 | 320N | 8mm | 24.0kg |
| CBOZSP050-3 | 5.0t | 3.0m | 2 | 350N | 10mm | 42.0kg |
| CBOZSP075-3 | 7.5t | 3.0m | 3 | 370N | 10mm | 51.0kg |
| CBOZSP100-3 | 10.0t | 3.0m | 4 | 370N | 10mm | 72.0kg |
| CBOZSP150-3 | 15.0t | 3.0m | 6 | 380N | 10mm | 110.0kg |
| CBOZSP200-3 | 20.0t | 3.0m | 8 | 390N*2 | 10mm | 153.0kg |
| CBOZSP300-3 | 30.0t | 3.0m | 12 | 390N*2 | 10mm | 215.0kg |

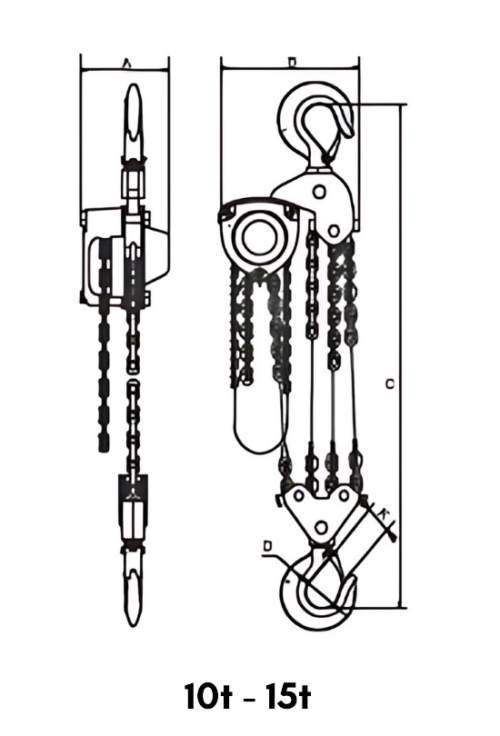

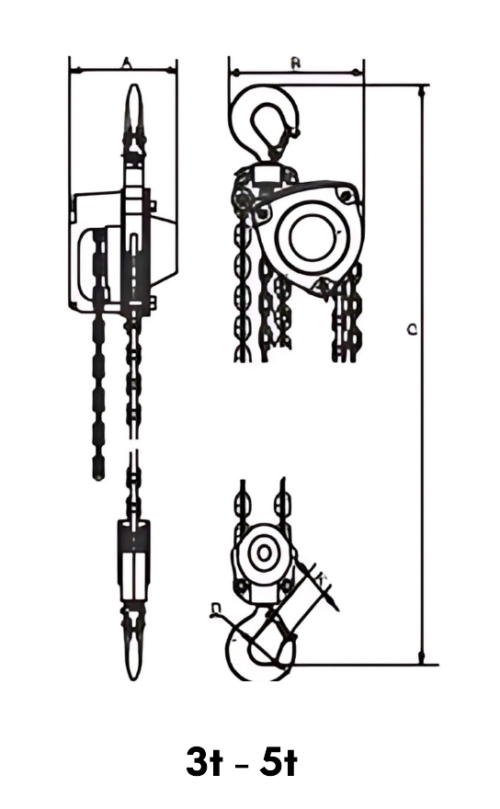

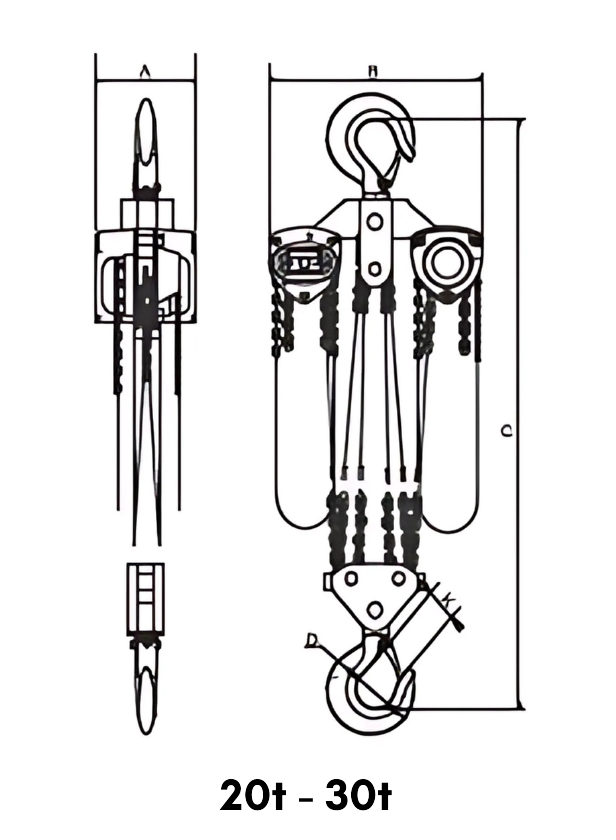

Dimensions
| PRODUCT CODE | A | B | C | D | K |
|---|---|---|---|---|---|
| CBOZSP005-2.5 | 144mm | 145mm | 350mm | 35mm | 26mm |
| CBOZSP010-2.5 | 153mm | 155mm | 385mm | 44mm | 30mm |
| CBOZSP015-3 | 160mm | 185mm | 420mm | 50mm | 31mm |
| CBOZSP020-3 | 167mm | 194mm | 470mm | 52mm | 34mm |
| CBOZSP030-3 | 160mm | 205mm | 555mm | 58mm | 38mm |
| CBOZSP050-3 | 195mm | 250mm | 695mm | 68mm | 46mm |
| CBOZSP075-3 | 195mm | 375mm | 800mm | 71mm | 55mm |
| CBOZSP100-3 | 195mm | 370mm | 818mm | 92mm | 63mm |
| CBOZSP150-3 | 213mm | 415mm | 970mm | 98mm | 68mm |
| CBOZSP200-3 | 238mm | 650mm | 930mm | 106mm | 83mm |
| CBOZSP300-3 | 320mm | 670mm | 1050mm | 110mm | 95mm |
