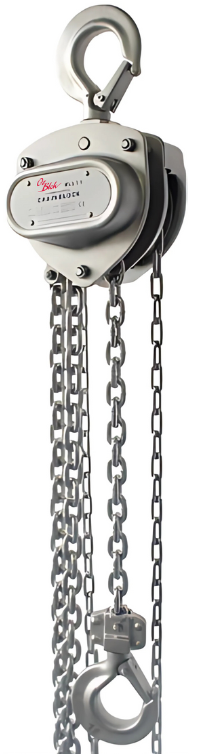

Stainless Steel Chain Block
Stainless Steel Chain Block
- Brand: OzBlok
- Capacity: 0.25t to 5.0t
This lightweight, robust 304 stainless steel chain hoist is ideal for food-grade manufacturing or corrosive environments. Versatile and compact, this chain block provides maximum lift and is perfect for low headroom applications where heavy lifting is required.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Fully enclosed gear train
- Asbestos free friction disc
- Automatic double pawl braking system
- Fully machined lift wheel, supported by needle roller bearings
- Forged stainless steel lower hook complete with thrust race bearing
- All exposed components are constructed with 304 stainless steel, including stainless steel hand chain and loan chain
Industries
- Construction
- Manufacturing
- Marine
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | STANDARD LIFT | FALLS OF CHAIN | HAND EFFORT TO LIFT W.L.L. | LOAD CHAIN Ø | NET WEIGHT |
|---|---|---|---|---|---|---|
| CBOZSS002-3 | 0.25t | 3m | 1 | 200N | 4.0mm | 4.00kg |
| CBOZSS005-3 | 0.5t | 3m | 1 | 200N | 7.1mm | 12.10kg |
| CBOZSS010-3 | 1.0t | 3m | 1 | 300N | 7.1mm | 12.80kg |
| CBOZSS020-3 | 2.0t | 3m | 2 | 310N | 7.1mm | 19.20kg |
| CBOZSS030-3 | 3.0t | 3m | 2 | 320N | 9.0mm | 31.40kg |
| CBOZSS050-3 | 5.0t | 3m | 3 | 380N | 9.0mm | 41.00kg |
| CBOZSS002-6 | 0.25t | 6m | 1 | 200N | 4.0mm | 5.20kg |
| CBOZSS005-6 | 0.5t | 6m | 1 | 200N | 7.1mm | 18.01kg |
| CBOZSS010-6 | 1.0t | 6m | 1 | 300N | 7.1mm | 18.71kg |
| CBOZSS020-6 | 2.0t | 6m | 2 | 310N | 7.1mm | 28.50kg |
| CBOZSS030-6 | 3.0t | 6m | 2 | 320N | 9.0mm | 43.70kg |
| CBOZSS050-6 | 5.0t | 6m | 3 | 380N | 9.0mm | 57.50kg |
Dimensions
| PRODUCT CODE | A | B | D | K | Hmin |
|---|---|---|---|---|---|
| CBOZSS002-3 | 105mm | 109mm | 32mm | 27mm | 250mm |
| CBOZSS005-3 | 152mm | 160mm | 41mm | 27mm | 350mm |
| CBOZSS010-3 | 152mm | 160mm | 50mm | 29mm | 370mm |
| CBOZSS020-3 | 152mm | 185mm | 51mm | 38mm | 475mm |
| CBOZSS030-3 | 167mm | 230mm | 57mm | 41mm | 565mm |
| CBOZSS050-3 | 167mm | 350mm | 67mm | 60mm | 710mm |
| CBOZSS002-6 | 105mm | 109mm | 32mm | 27mm | 250mm |
| CBOZSS005-6 | 152mm | 160mm | 41mm | 27mm | 350mm |
| CBOZSS010-6 | 152mm | 160mm | 50mm | 29mm | 370mm |
| CBOZSS020-6 | 152mm | 185mm | 51mm | 38mm | 475mm |
| CBOZSS030-6 | 167mm | 230mm | 57mm | 41mm | 565mm |
| CBOZSS050-6 | 167mm | 350mm | 67mm | 60mm | 710mm |
