2000 Ratchet Puller – Wire Type
2000 Ratchet Puller – Wire Type
- Brand: Nagaki
- Capacity: 2.0t

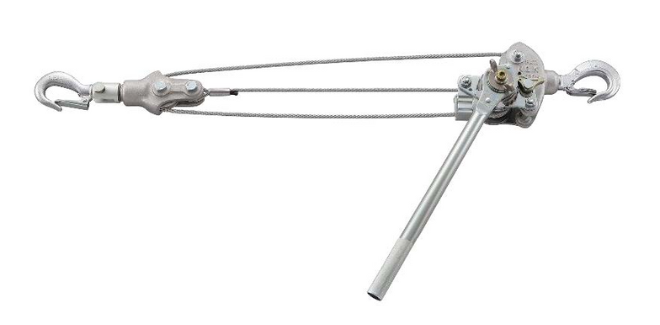

Versatile and durable, the 2000 Ratchet Puller features a large powerful ratchet lever that provides 20kN of pulling force, minimising time and effort required by the operator. With a heavy duty ratchet mechanism, full 360 degree rotating handle and forward/reverse load holding mechanism, this 2000 Ratchet Puller combines ease of use with Japanese quality.
Features
Industries
Documents
Features
- Ratchet mechanism
- 360 degrees rotating handle
- Lightweight aluminium housing
- Forward/reverse load holding handle
Industries
- Energy
- Lifts/Elevators
- Railways
- Telecommunications
- Utilities
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | S.W.L. | WIRE Ø | OVERALL LENGTH | LEVER LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| NAGAKI-52006 | 20kN | 6.3mm | 500mm – 1260mm | 430mm | 6.0kg |
