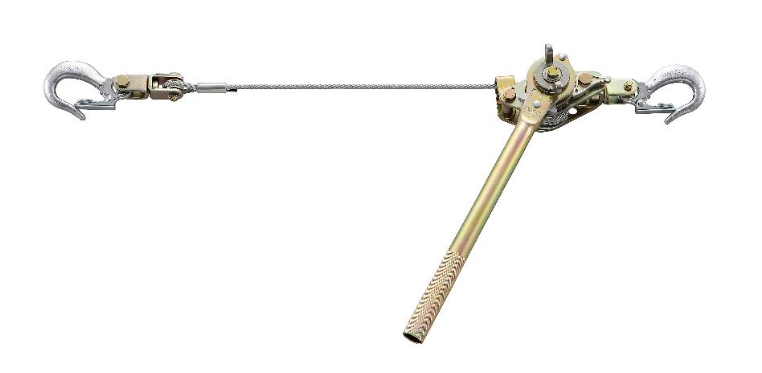

500 Ratchet Puller – Wire Type
- Brand: Nagaki
- Capacity: 0.5t
Versatile and durable, the 500 Ratchet Puller features a large powerful ratchet lever that provides 5kN of pulling force, minimising time and effort required by the operator. With a heavy duty ratchet mechanism, full 360 degree rotating handle and forward/reverse load holding mechanism, this 500 Ratchet Puller combines ease of use with Japanese quality.
Features
Industries
Documents
Features
- Ratchet mechanism
- 360 degrees rotating handle
- Lightweight aluminium housing
- Forward/reverse load holding handle
Industries
- Energy
- Lifts/Elevators
- Railways
- Telecommunications
- Utilities
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | S.W.L. | WIRE Ø | OVERALL LENGTH | LEVER LENGTH | NET WEIGHT |
---|---|---|---|---|---|
NAGAKI-52001 | 5kN | 5.0mm | 360mm – 1370mm | 330mm | 2.4kg |
