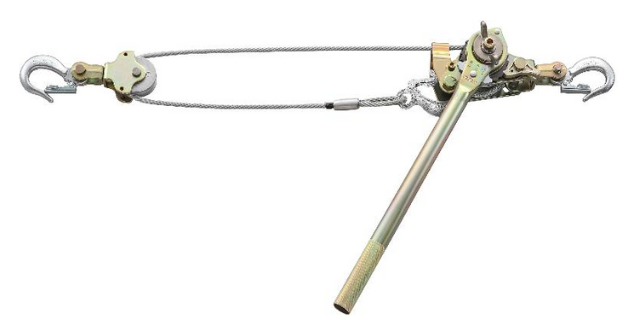

P-1500EX Ratchet Puller – Wire Type
P-1500EX Ratchet Puller – Wire Type
- Brand: Nagaki
- Capacity: 0.75t/1.5t
Versatile and durable, the P-1500EX Puller features a large powerful ratchet lever that provides 7.5kN/15kN of pulling force, minimising time and effort required by the operator. With a heavy duty ratchet mechanism, full 360 degree rotating handle and forward/reverse load holding mechanism, this P-1500EX Puller combines ease of use with Japanese quality. Optional safety hook available.
Features
Industries
Documents
Features
- Ratchet mechanism
- 360 degrees rotating handle
- Lightweight aluminium housing
- Forward/reverse load holding handle
Industries
- Energy
- Lifts/Elevators
- Railways
- Telecommunications
- Utilities
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | S.W.L. | WIRE Ø | OVERALL LENGTH | LEVER LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| NGKA P-1500EX | 7.5kN/15kN | 5.0mm | 500mm – 3500mm/6500mm | 430mm | 5.0kg |
