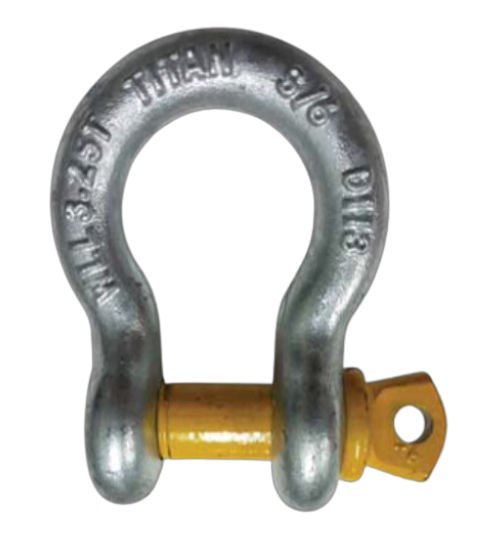

Grade ‘S’ Bow Shackle – Screw Pin
Grade ‘S’ Bow Shackle – Screw Pin
- Brand: Titan Lifting
- Capacity: 0.33t to 85.00t
With a high strength to weight ratio, our safe and reliable grade 'S' bow shackles with screw pin, ensure a secure connection to chains, wire ropes and other fittings when lifting. Ideal in applications where side loading is present and with multi-leg sling assemblies.
- Australian Standard: AS2741
Features
Industries
Documents
Features
- Proof tested and load rated
- Hot dipped galvanised finish
- Test certificate available upon request
- Marked with W.L.L. and batch number
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Logistics
- Manufacturing
- Marine
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLSSB0033 | 0.33t | 5mm | 0.03kg |
| TLSSB005 | 0.50t | 6mm | 0.05kg |
| TLSSB0075 | 0.75t | 8mm | 0.09kg |
| TLSSB010 | 1.00t | 10mm | 0.14kg |
| TLSSB015 | 1.50t | 11mm | 0.20kg |
| TLSSB020 | 2.00t | 13mm | 0.31kg |
| TLSSB032 | 3.25t | 16mm | 0.60kg |
| TLSSB047 | 4.75t | 19mm | 1.00kg |
| TLSSB065 | 6.50t | 22mm | 1.60kg |
| TLSSB085 | 8.50t | 25mm | 2.30kg |
| TLSSB095 | 9.50t | 29mm | 3.20kg |
| TLSSB120 | 12.00t | 32mm | 4.40kg |
| TLSSB135 | 13.50t | 35mm | 5.8kg |
| TLSSB170 | 17.00t | 38mm | 7.7kg |
| TLSSB250 | 25.00t | 44mm | 13.0kg |
| TLSSB350 | 35.00t | 51mm | 19.0kg |
| TLSSB550 | 55.00t | 65mm | 37.0kg |
| TLSSB850 | 85.00t | 75mm | 59.0kg |
Dimensions
| PRODUCT CODE | D | W | L | B | E |
|---|---|---|---|---|---|
| TLSSB0033 | 6mm | 10mm | 22mm | 15mm | 14mm |
| TLSSB005 | 8mm | 12mm | 29mm | 20mm | 17mm |
| TLSSB0075 | 10mm | 13mm | 31mm | 21mm | 21mm |
| TLSSB010 | 11mm | 17mm | 37mm | 26mm | 25mm |
| TLSSB015 | 13mm | 18mm | 43mm | 29mm | 27mm |
| TLSSB020 | 16mm | 21mm | 48mm | 33mm | 33mm |
| TLSSB032 | 19mm | 27mm | 61mm | 43mm | 40mm |
| TLSSB047 | 22mm | 32mm | 72mm | 51mm | 48mm |
| TLSSB065 | 25mm | 37mm | 84mm | 58mm | 54mm |
| TLSSB085 | 29mm | 43mm | 95mm | 68mm | 60mm |
| TLSSB095 | 32mm | 46mm | 108mm | 74mm | 67mm |
| TLSSB120 | 35mm | 52mm | 119mm | 83mm | 76mm |
| TLSSB135 | 38mm | 57mm | 133mm | 92mm | 84mm |
| TLSSB170 | 41mm | 60mm | 146mm | 98mm | 92mm |
| TLSSB250 | 51mm | 73mm | 178mm | 127mm | 110mm |
| TLSSB350 | 57mm | 83mm | 197mm | 146mm | 127mm |
| TLSSB550 | 69mm | 104mm | 263mm | – | – |
| TLSSB850 | 3mm | 125mm | 325mm | – | – |
