Grade ‘S’ Bow Shackle – Safety Pin
Grade ‘S’ Bow Shackle – Safety Pin
- Brand: Titan Lifting
- Capacity: 85.0t
Safe and reliable, these grade S bow shackles with safety pin ensure a secure connection to chains, wire ropes and other fittings when lifting. The safety pin prevents dislodgement during lifting, whilst also allowing for rotation during operation making them ideal for use in industrial settings. These shackles are also available in a matt black finish to suit the entertainment industry.
- Australian Standard: AS2741
Features
Industries
Documents
Features
- Proof tested and load rated
- Hot dipped galvanised finish
- Test certificate available upon request
- Marked with W.L.L. and batch number
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Logistics
- Manufacturing
- Marine
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLSSS005 | 0.50t | 6mm | 0.06kg |
| TLSSS0075 | 0.75t | 8mm | 0.10kg |
| TLSSS010 | 1.00t | 10mm | 0.17kg |
| TLSSS015 | 1.50t | 11mm | 0.24kg |
| TLSSS020 | 2.00t | 13mm | 0.36kg |
| TLSSS032 | 3.25t | 16mm | 0.69kg |
| TLSSS047 | 4.75t | 19mm | 1.12kg |
| TLSSS065 | 6.50t | 22mm | 1.70kg |
| TLSSS085 | 8.50t | 25mm | 2.50kg |
| TLSSS095 | 9.50t | 29mm | 3.45kg |
| TLSSS120 | 12.00t | 32mm | 4.90kg |
| TLSSS135 | 13.50t | 35mm | 6.40kg |
| TLSSS170 | 17.00t | 38mm | 8.40kg |
| TLSSS250 | 25.00t | 44mm | 14.00kg |
| TLSSS350 | 35.00t | 51mm | 20.00kg |
| TLSSS550 | 55.00t | 65mm | 39.00kg |
| TLSSS850 | 85.00t | 75mm | 63.00kg |

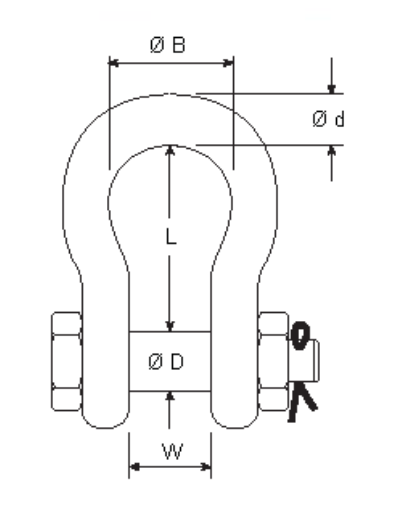

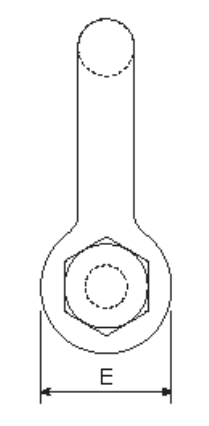

Dimensions
| PRODUCT CODE | D | W | L | B | E |
|---|---|---|---|---|---|
| TLSSS005 | 8mm | 12mm | 29mm | 20mm | 17mm |
| TLSSS0075 | 10mm | 13mm | 31mm | 21mm | 21mm |
| TLSSS010 | 11mm | 17mm | 37mm | 26mm | 25mm |
| TLSSS015 | 13mm | 18mm | 43mm | 29mm | 27mm |
| TLSSS020 | 16mm | 21mm | 48mm | 33mm | 33mm |
| TLSSS032 | 19mm | 27mm | 61mm | 43mm | 40mm |
| TLSSS047 | 22mm | 32mm | 72mm | 51mm | 48mm |
| TLSSS065 | 25mm | 37mm | 84mm | 58mm | 54mm |
| TLSSS085 | 29mm | 43mm | 95mm | 68mm | 60mm |
| TLSSS095 | 32mm | 46mm | 108mm | 74mm | 67mm |
| TLSSS120 | 35mm | 52mm | 119mm | 83mm | 76mm |
| TLSSS135 | 38mm | 57mm | 133mm | 92mm | 84mm |
| TLSSS170 | 41mm | 60mm | 146mm | 98mm | 92mm |
| TLSSS250 | 51mm | 73mm | 178mm | 127mm | 110mm |
| TLSSS350 | 57mm | 83mm | 197mm | 146mm | 127mm |
| TLSSS550 | 69mm | 104mm | 263mm | – | – |
| TLSSS850 | 3mm | 125mm | 325mm | – | – |
